EE Bright Box User Manual

142

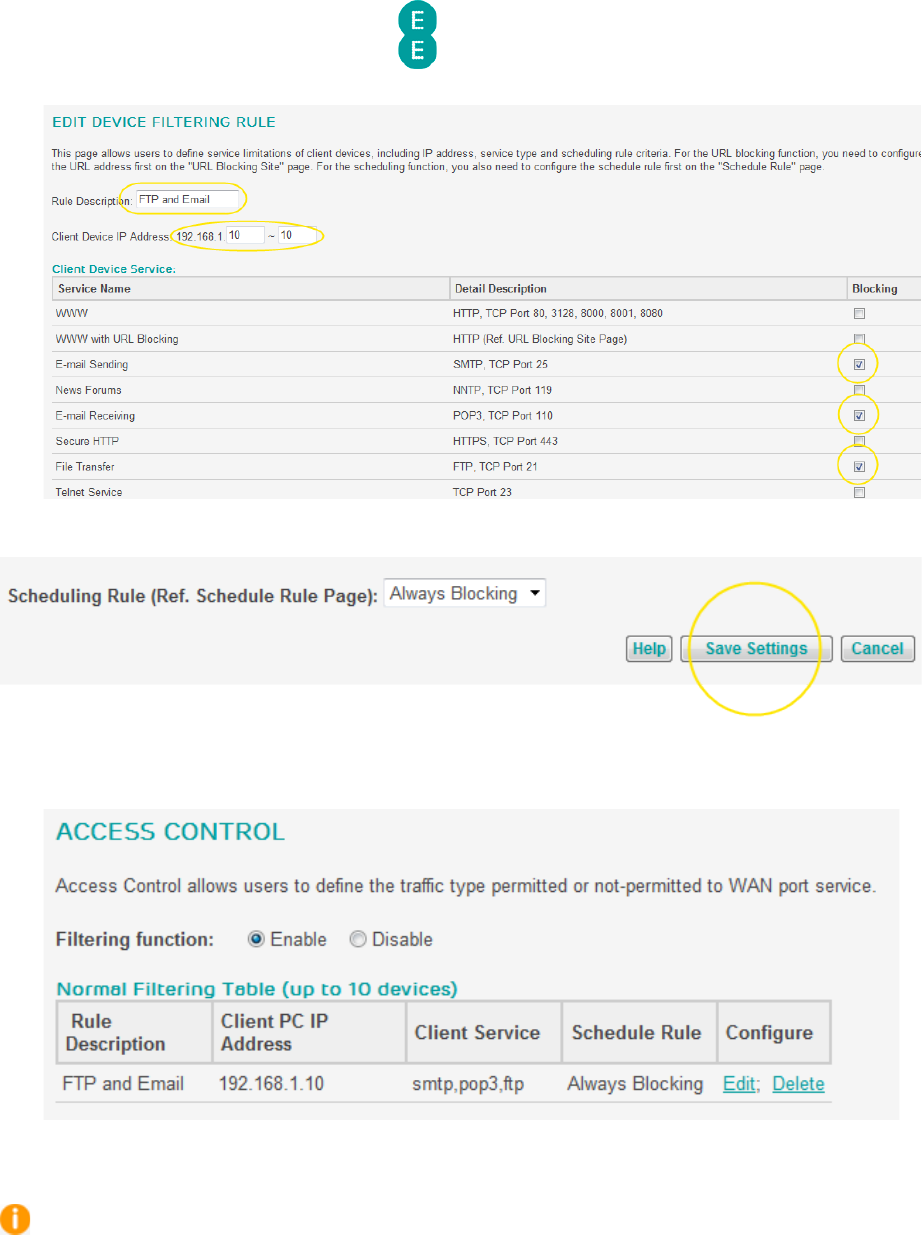

10. Do not change the ‘Schedule Rule’ option, leave it as ‘Always Blocking’ and click Save

Settings:

11. The access control rule has now been created and enabled and appears in the filtering

table.

12. You can delete the access control filtering rule at any time by clicking the delete link

next to the rule in the table. You can also change the rule description, client IP address

range or client device services by clicking the edit link.

If you want to block a particular application that is not listed in the ‘client device service’

list, you can do this in the ‘user define service’ section on the Edit Device Filtering Rule

page. You can configure up to 5 different ranges of ports to be blocked for either TCP or UDP

traffic. Please refer to your software instructions or user manual for information on the ports

that are used and need to be blocked. In the example below we have blocked port ranges

200-213 and port 1500 for TCP traffic:
